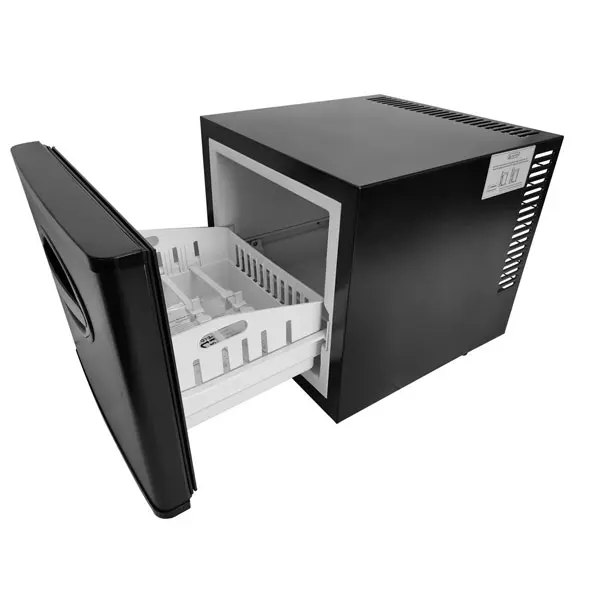

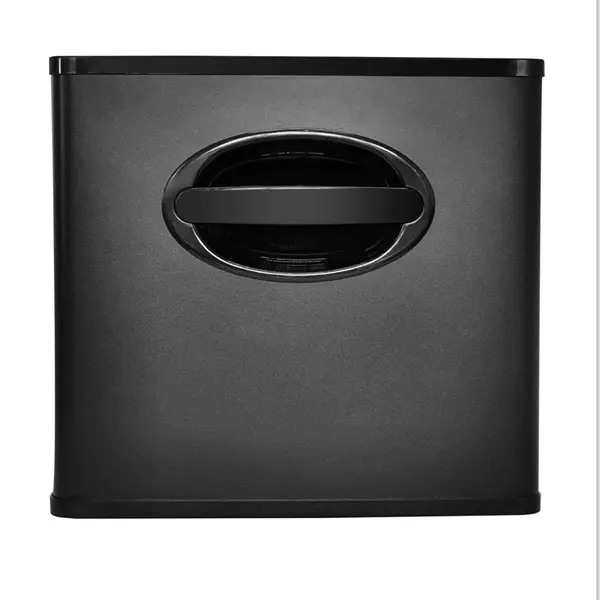

M-22CHotel Drawer Minibar

Model: M-22C
Volume: 19L
Specification:: 220V-240V~ / 50Hz or 110-120V~ / 60Hz; 60W; 8-12℃(at ambinet is 25℃)
Color: Black/Gray
Feature: Thermoelectric drawer Mini Bar; Unique design with roller-bearing drawer; Interior LED lights as standard; Automatic defrost

  • Description

Description

Advantages Description

The Drawer Mini Bar designers and engineers are pioneers in the development of versatile and silent running mini bars, they are again setting the pace in the hospitality industry, providing a compact Mini Bar which will meet the most demanding room design.

Features

• Thermoelectric drawer Mini Bar.

• Unique design with roller-bearing drawer.

• IS 9001 and 14001 certified.

• Contents visible and accessible at a glance, adjustable dividers and bottle fingers for flexibility in product assortment.

• Interior LED lights as standard.

• Automatic defrost.

• 2 x small assortment dividers.

• 3 x big assortment dividers.

• 3 bottle fingers.

How to provide proper ventilation

Correct ventilation is essential to ensure optimum performance, low energy consumption and a long life of the Drawer Mini Bar.  When installing the unit leave about 15 mm clearance between the rear of the cabinet and the furniture wall. Never place the drawer Mini Bar near a heat source to avoid that warm air enters the ventilation duct through the air inlet and impairs the cooling effect.  Sufficient air flow is accomplished by creating a chimney effect; going in from front of unit, underneath and up the back of the cooling unit exiting at the top. Ventilation dimensions: 31 square inches inflow and 31 square inches exhaust. Requirement: minimum 0.59 inch clearance between back of unit and furniture wall.



Internal Light

Absorption Minibar Internal Light

Optional Lock

Absorption Minibar Optional Lock

Temperature Control

Absorption Minibar Temperature Control



Specification

Item

Thermoelectric Minibar

Model No

M-22C

Color

Gray/Black

External Dimensions

W385xD455xH375MM

G.W/N.W.

9.8/10.9KGS

Capacity

19L

Door

Foamed door

Technology

Thermoelectric cooling system

Voltage/Frequency

220-240V~(110V~ optional)/50-60Hz

Power

60W

Temp Range

5-10℃ (At 25℃ Ambient)

Certificate

CE/RoHS
